Rear Loading Garbage Compactor with Crane in Rear (HV400)

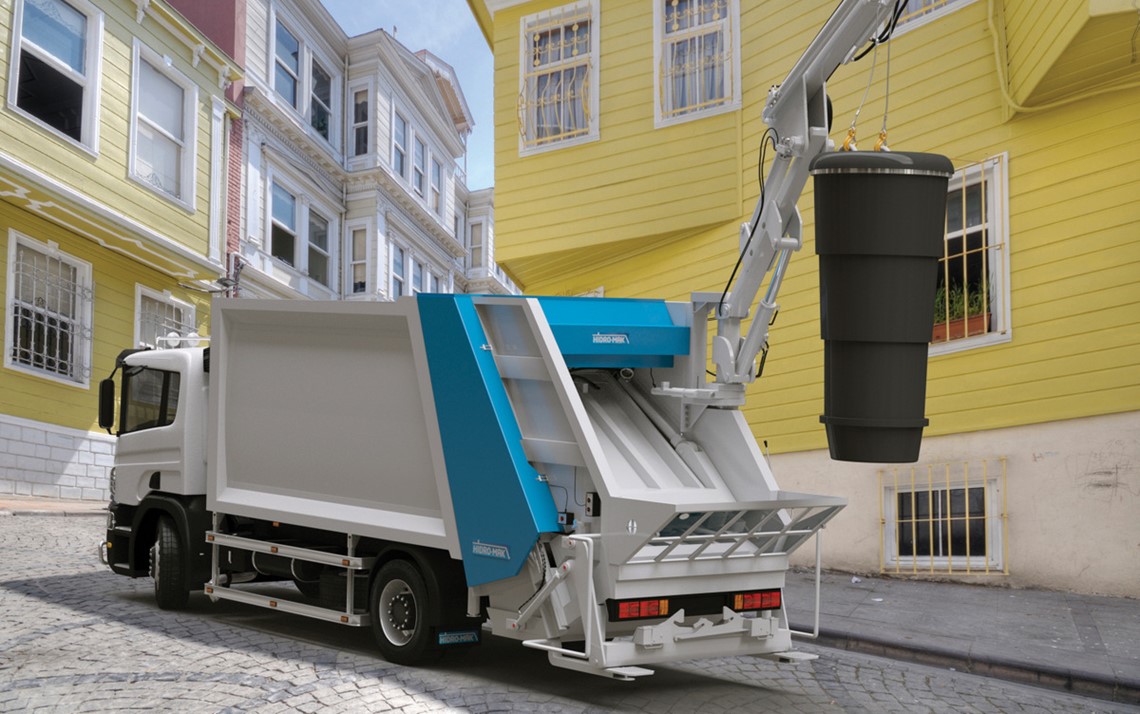

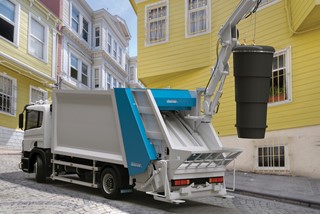

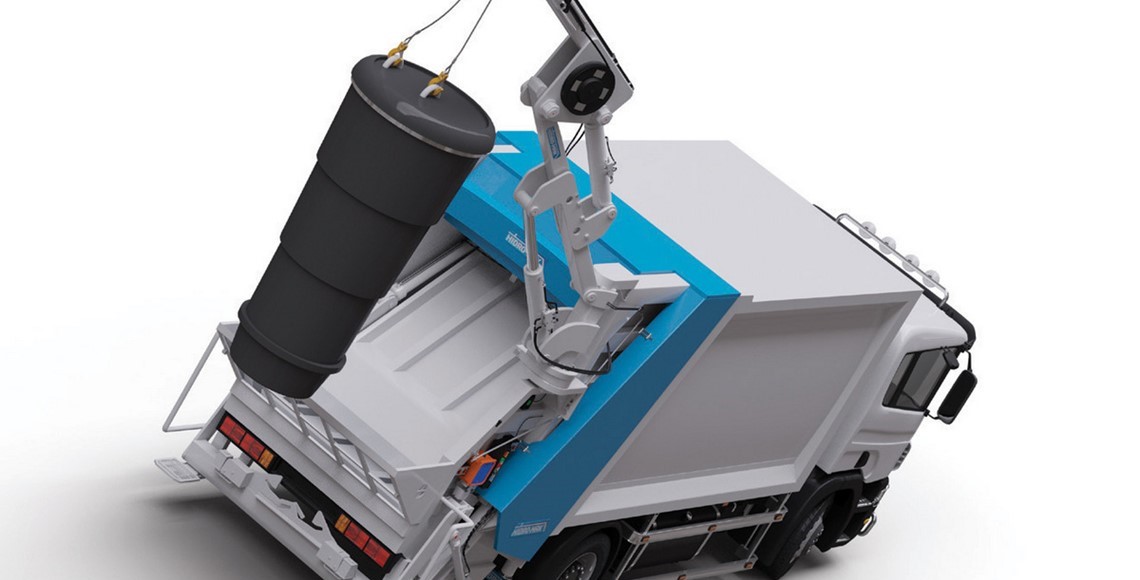

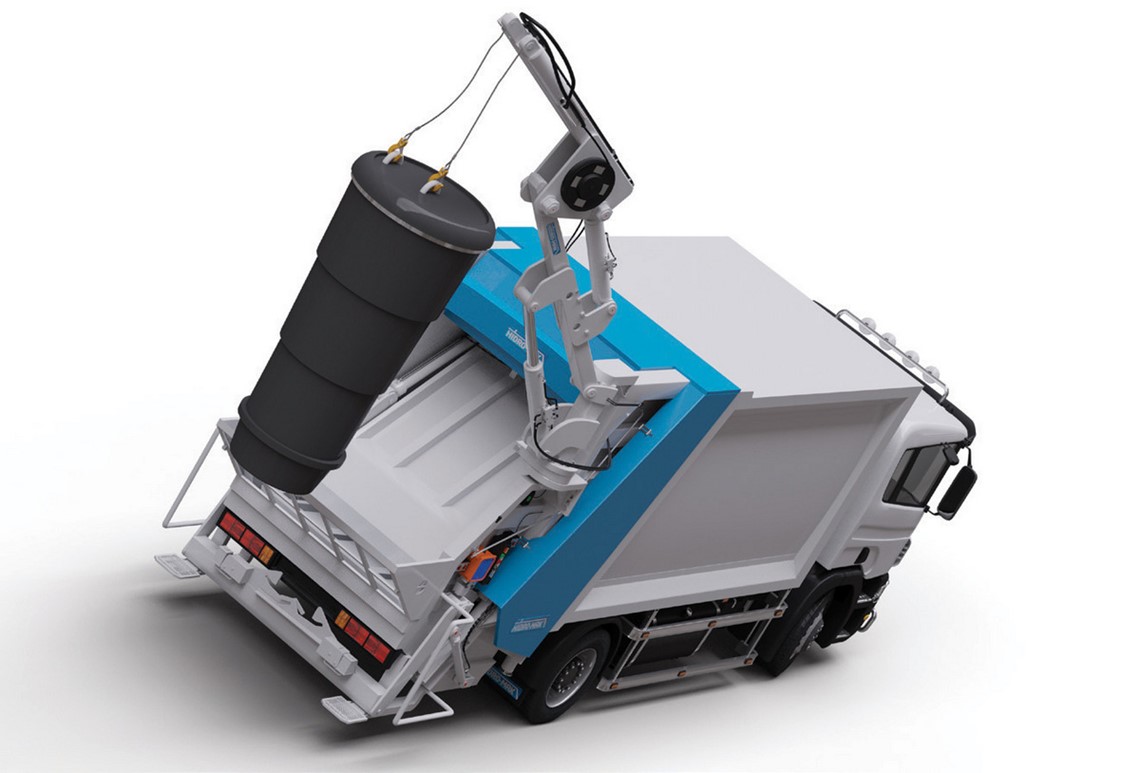

The Crane has been mounted on the rear bunker of the garbage compactor and it discharges to the rear bunker the underground container it lifts. Its most significant advantage; is that the present rear-end loaded hydraulic compaction garbage compactors can be transformed easly in to Crane Hydraulic Garbage Compactor by the modification made. Moreover, it can discharge standart containers, too, bye removing the extra cover on the rear bunker

Low Cost Crane
HV 400, High capacity and low cost crane that manufactured by Hidro-Mak
Can be transformed into Rear Loading Garbage Truck
HV 400 Underground Container's Crane can be adapted present garbage truck that rear loading type. ** Please contact our sales department to availability.
Ecotwin- Hidrolik Özellikler
Primary Working Pressure190 bar
Maximum Working Pressure220 bar
Oil Tank Volume155-240 lt
Hydraulic Pump84 cm3/rev
HV 400 Underground Container Crane Mechanical Specification
Maximum Arm Length4 m
Rotation180 degree
Underground Container Volume1,5-3m3
Suitable Truck GWV (min)18 ton 4x2
HV 400 Under Ground Container Capacity
4m (Max Arm Length)1500 kg
3 m2000 kg
2 m3000 kg
1 m6000 kg
HV 400 Underground Container Crane Working Time
Stabilizing Legs Lifting (up&down)25 sn
Bending Roller on-off time28 sn
Main Arm up&down31 sn
Rotating 180 degree35 sec
Extending cylinder forward&back Cycle17 sec
p.sAccording to average of pump speed
  • Double Hook Cover Opening
    Double Hook Cover Opening

    Double hook option, for suitable underground container system (like Molok Semi Underground System)

  • Remote Control
    Remote Control

    Remote Control is also connected with cable for necessarycondition (Low battery or faulty of radio based control)

  • Tandem Pump
    Tandem Pump

    Underground Crane and Garbage Truck Compaction system work with the compacting System while using tandem pump

×
